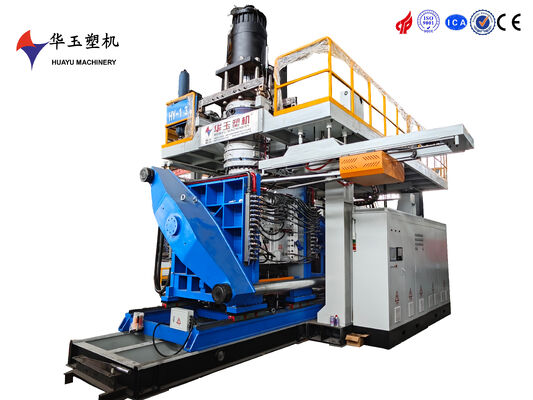

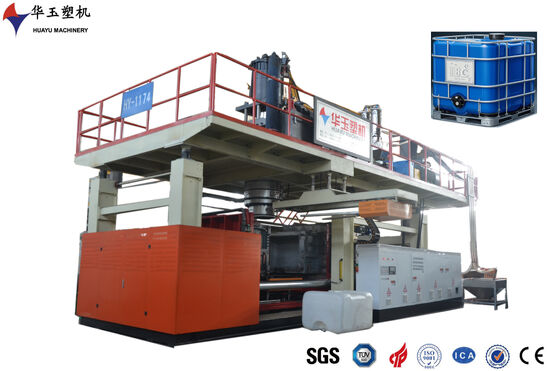

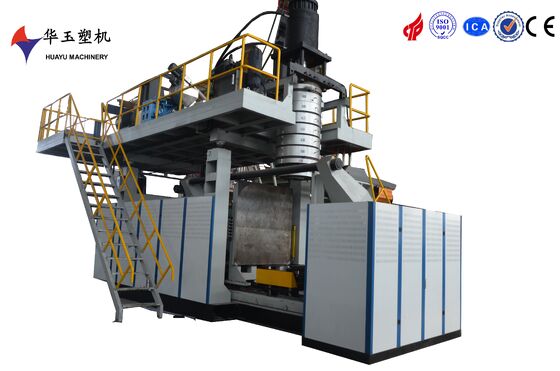

3000L 5-Layer Large Lightweight Water Tank Blow Molding Machine with Lightweight Cooling System

مكان المنشأ الصين
اسم العلامة التجارية HUAYU
إصدار الشهادات ISO9001 CE
رقم الموديل HYBM3000-5
الحد الأدنى لكمية 1 مجموعة
الأسعار 380000 USD
تفاصيل التغليف يتم تفكيكها في أجزاء كثيرة لنقل الحاويات
وقت التسليم 4 اشهر
شروط الدفع T/T ، L/C.
القدرة على العرض 1set 120days

اتصل بي للحصول على عينات مجانية وكوبونات

ال WhatsApp:0086 18588475571

(ويتشات): 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.

x
تفاصيل المنتج
نوع الآلة آلة صنع الزجاجات البلاستيكية عالية السرعة شاشة تعمل باللمس سيمنز
صمام المؤازرة Moog قدرة التلدين 800 كجم/ساعة
صندوق التروس جوماو طريقة التنظيف سهولة التنظيف
مادة النطاط الفولاذ المقاوم للصدأ مفتاح التكييف شنايدر
نطاق السعة 500-3000L ، 5 طبقات نظام تبريد العفن تبريد الهواء
أقصى ضغط الهواء 0.8MPA سعة 1000 لتر
محرك التغذية 2.2/2.2/2.2kw يضمن 1 سنة
نوع العفن محطة واحدة
إبراز

3000L water tank blow molding machine,5-layer lightweight water tank machine,blow molding machine with cooling system

,

5-layer lightweight water tank machine

,

blow molding machine with cooling system

يمكنك تحديد المنتجات التي تحتاجها والتواصل معنا في لوحة الرسائل.
اترك رسالة
منتوج وصف

This lightweight blow molding machine with a 3000L capacity and 5-layer co-extrusion is designed for efficient production of lightweight plastic products. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its lightweight design and reliable performance make it suitable for industries requiring lightweight plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs. The integrated lightweight cooling system further reduces energy consumption, making it an ideal choice for manufacturers looking to optimize their production processes while minimizing environmental impact.

 Clamping  System

platen size

2200*2400*70mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

200+300*2

clamping cylinder stroke

2100mm



clamping force

2200KN



distance between platens

1100-3200mm



ax. mould size

1700*2200mm(W*H)



 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



imum air pressure

0.8Mpa



air consumption

3m3/min



Cooling method

Circulating water



Water pressure

0.3MPa



Cooling water consumption

75m3/h


3000L 5-Layer Large Lightweight Water Tank Blow Molding Machine with Lightweight Cooling System 0
