Huayu 100L water tank high speed fully automatic extrusion blow moulding machine
| مكان المنشأ | الصين |
|---|---|
| اسم العلامة التجارية | Huayu |
| إصدار الشهادات | CE,TUV,ISO9001，SGS |
| رقم الموديل | هيبم-100L |
| الحد الأدنى لكمية | 1 مجموعة |
| الأسعار | negotiable |
| تفاصيل التغليف | سيتم تفكيك الآلة إلى أجزاء كثيرة لنقل الحاويات. |
| وقت التسليم | أربعة أشهر |
| شروط الدفع | الاعتماد المستندي، تي/تي |
| القدرة على العرض | 40sets/السنة |
اتصل بي للحصول على عينات مجانية وكوبونات
ال WhatsApp:0086 18588475571
(ويتشات): 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| رن القدرة | 25-100 | بُعد الآلة | 6.3*4.2*4.2 |
|---|---|---|---|
| معدل | 40 كيلو واط | القوة الكلية | 103kw |
| محرك الطحن | 45kw | قطر المسمار | 90mm |
| المسمار L/D نسبة | 28: 1 | ||
| إبراز | 100L water tank blow moulding machine,high speed automatic blow moulding machine,extrusion blow moulding machine with water tank,high speed automatic blow moulding machine,extrusion blow moulding machine with water tank |
||
منتوج وصف

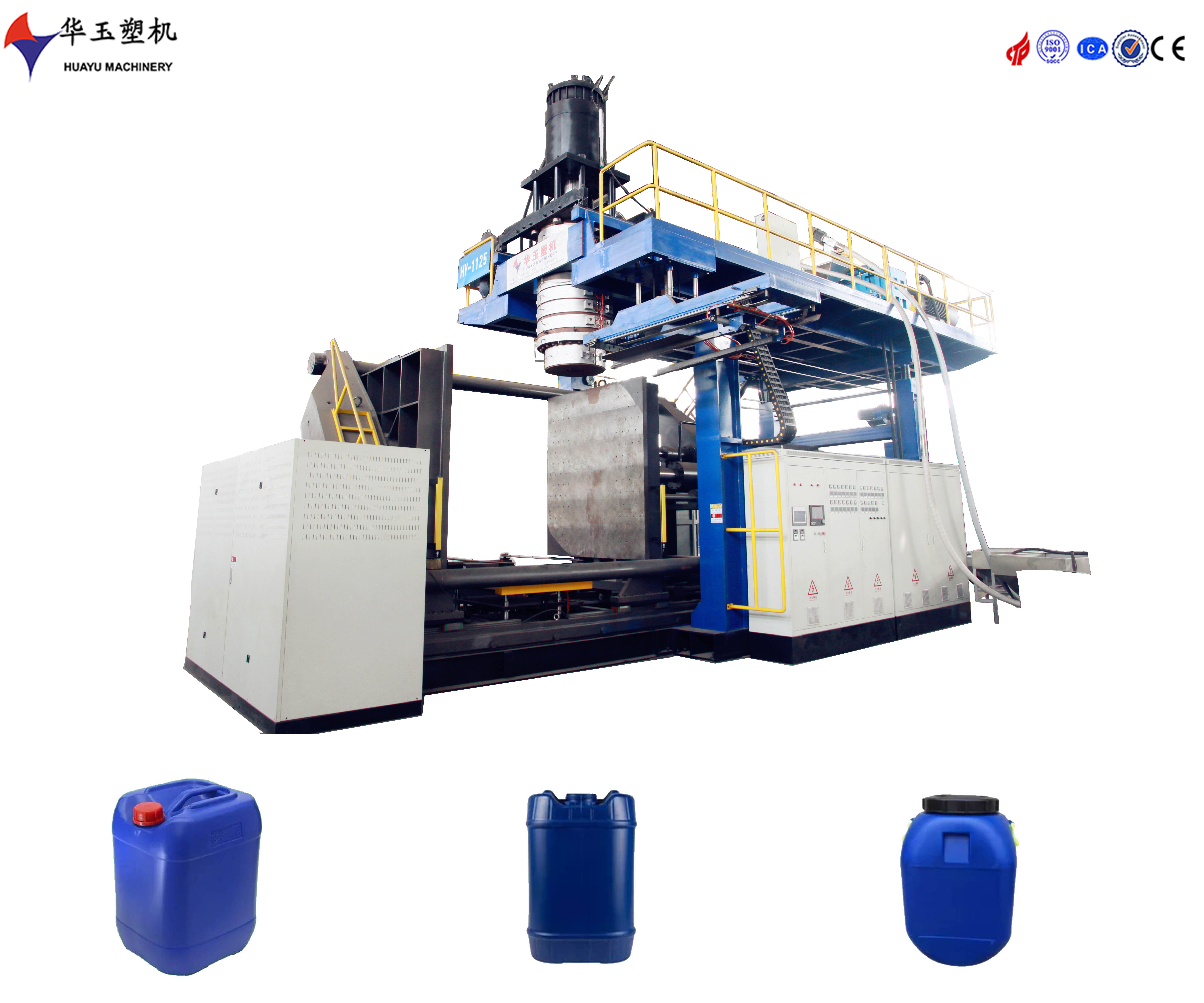

Huayu 25-100L water tank blow moulding machine
Machine specifications
| 25-100L | 1layer | 2layers | 3layers |
| Capacity rang | 25-100L | 25-100L | 25-100L |
| Machine dimension | 6.3*4.2*4.2M | 6*5.2*4.5M | 7*5.2*4.6M |
| Average | 40KW | 70KW | 90KW |
| Total power | 103KW | 145KW | 180KW |
| Accumulator capacity | 7KG-12KG | 7KG-12KG | 7KG-12KG |
| Extruder motor | 45KW | 37KW*2 | 45KW+15KW*2 |
| Screw diameter | 90MM | 80MM*2 | 90MM*1/65MM*2 |
| Screw L/D ratio | 28:1 | 28:1 | 28:1 |
| Plasticizing capacity | 120KG/H | 150KG/H | 170KG/H |
| Platen size | 800*900MM | 800*900MM | 800*900MM |
| Platen distance | 500-1400MM | 500-1400MM | 500-1400MM |
| Clamping force | 500KN | 500KN | 500KN |
| Servo motor | 28KW | 28KW | 28KW |
Technical features:
1. The equipment adopts Siemens control system and imported hydraulic system, making it more stable and durable.
2. The equipment adopts nano heating coils, which have higher thermal efficiency and better energy-saving effect.
3. Adopting the world's advanced MOOG wall thickness control system, wall thickness control is more precise
4..Equipped with Schneider soft start appliances, the equipment operates more stably.
Company advantage
Experienced Engineer Team, Top Brand Accessories, Strict Quality Control and Certification System, Powerful Machining and Processing Ability, Create the High Quality Huayu Machinery!
In the design and production process of Huayu Hollow Blow Molding Machine, the latest technology and supporting facilities are adopted, such as German SEW reducer, Siemens PLC controller, American Muger wall thickness controller, etc., to further optimize the overall performance of the equipment and expand its application fields.
Arrange professional and technical engineer to help equipment operators installation and connect water and electricity of the blow molding machines with auxiliary equipment,to enable the equipment a standardized and safe manner to running. We also provide training the machine operators, so that operators can operate the blow molding machine skillfully and master the maintenance of the equipment.
Weifang Plastic Machinery Co., Ltd. has over 20 years of experience in producing and designing blow molding machines, and has over 30 comprehensive mechanical processing equipment such as large machining centers, large floor boring and milling machines imported from Germany, large gantry milling machines, and large CNC lathes, which can grasp the accuracy of equipment processing from the source.
