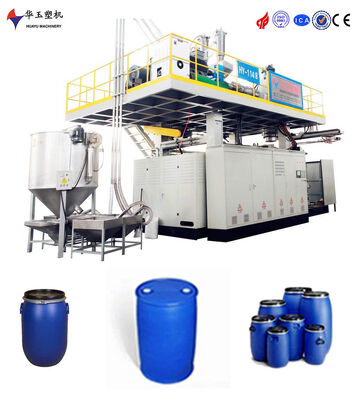

250L Capacity Double-Ring Drum Blow Molding Machine with 30:1 L/D Ratio and Energy-Saving Operation
| مكان المنشأ | الصين |
|---|---|
| اسم العلامة التجارية | HUAYU |
| إصدار الشهادات | ISO9001 CE |
| رقم الموديل | هيبم-250L-1 |
| الحد الأدنى لكمية | 1 مجموعة |
| الأسعار | 260000 USD |
| تفاصيل التغليف | يتم تفكيكها في أجزاء كثيرة لنقل الحاويات |
| وقت التسليم | 4 اشهر |
| شروط الدفع | تي / تي، خطاب الاعتماد |
| القدرة على العرض | 1set 120days |
اتصل بي للحصول على عينات مجانية وكوبونات
ال WhatsApp:0086 18588475571
(ويتشات): 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي مخاوف، نحن نقدم المساعدة على الانترنت على مدار 24 ساعة.
xتفاصيل المنتج
| قطر المسمار | 150 مللي متر | L / د | 30: 1 |
|---|---|---|---|
| مادة المسمار | 38CrMoAlA، نيترة | الإخراج | 30 قطعة/ساعة |
| إمدادات الهواء | 0.8×6(MPa × متر مكعب في الدقيقة) | إجمالي الطاقة | 324.5 كيلو واط |
| متوسط استهلاك الطاقة ((AEC) | حوالي 180 كيلووات في الساعة | ||
| إبراز | 250L Capacity Drum Blow Molding Machine,30:1 L/D Ratio Blow Molding Apparatus,Energy-Saving Operation Double-Ring Drum Blow Molder,30:1 L/D Ratio Blow Molding Apparatus,Energy-Saving Operation Double-Ring Drum Blow Molder |
||
منتوج وصف
250L 1-Layer Double-Ring Drum Blow Molding Machine
Key Advantages
- High Production Efficiency: Fast cycle times and continuous molding capability deliver 50+ 250L double-ring drums per hour, significantly boosting production output for large-scale manufacturing.
- Precision Molding Performance: Advanced servo control system and precise die head design ensure uniform wall thickness and consistent double-ring structural dimensions, meeting strict industrial standards.
- Energy-Saving Operation: Energy-efficient motor and heat recovery technology reduce power consumption by 15-20% compared to traditional machines, cutting long-term operational costs.
- User-Friendly Operation: Intuitive touch screen HMI with pre-set molding parameters minimizes training time and simplifies daily production adjustments.
- Durable Equipment Build: High-strength steel frame and wear-resistant components provide a service life of over 10 years with minimal maintenance.
- Versatile Compatibility: Optimized for 250L 1-layer double-ring drums but adjustable for different plastic materials (HDPE/PP) and similar-sized barrel products.
- Stable Double-Ring Forming: Dedicated mold and air pressure control unit ensure rings have strong load-bearing capacity without deformation, meeting stacking and transportation requirements.
- Low Material Waste: Precision material feeding system and optimized parison control reduce plastic scrap rate to less than 3%, lowering raw material costs.
Energy Configuration Specifications
| Component | Specification |
|---|---|
| Extruder Driving Power | 160kw Siemens Independent Air Cooler |
| Hydraulic Main System Motor Power | 35.6KW Huichuan Servo Motor |
| Wall Thickness Control Motor Power | 7.5 KW |
| Heating Power of Extrusion System | 7 pcs * 7KW/pc |
| Power of Die Heating | 7 pcs * 6KW/pc |
| Air Supply | 0.8*6 (MPa * Cubic meter per minute) |
| Cooling Water Consumption | 0.3*20°*30 (MPa * degree * Cubic meter per hour) |
| Total Power | 324.5KW |
| Average Energy Consumption (AEC) | Approximately 180kw per hour |
This industrial blow molding machine is engineered for high-volume production of 250L double-ring drums, combining precision engineering with energy-efficient operation for optimal manufacturing performance.
